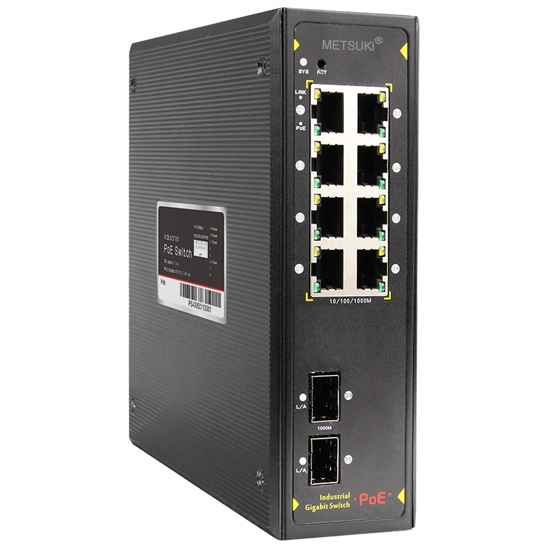

SWITCH POE MS-3108PF

Công tắc PoE  MS-3108PF đi kèm với các cổng Ethernet 8x 10/100 / 1000Base-T RJ45 và khe cắm SFP 2x gigabit
Nó có thể cung cấp điện cho các thiết bị mạng như camera IP , điện thoại IP và AP hiệu năng cao. Swich PoE này rất linh hoạt, khoảng cách truyền của cáp quang SFP có thể lên tới 120km, và có khả năng chống nhiễu điện từ cao.
Các thành phần sản phẩm MS-3108PF được kiểm tra nghiêm ngặt, có hiệu suất vượt trội về tính ổn định, khả năng thích ứng với môi trường. Vỏ kim loại có khả năng chống ăn mòn và nhiễu điện từ tốt hơn, đảm bảo sự ổn định và bảo mật của Bộ chuyển mạch Ethernet này. Đầu vào nguồn phù hợp và đáng tin cậy

TECHNICAL PARAMETER LIST
Product Name 10-Port Gigabit Ethernet Industrial POE Switch
Product Model MS-3108PF
Connector Type Fiber Port: 2x gigabit SFP slots RJ45 Port: 8x 100/1000BaseT ports that support PoE
Network Media 10BASE-T: UTP CAT 3, 4, 5/5e (≤100m); EIA/TIA-586 100-ohm STP (≤100m); 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (≤100m ); EIA/TIA-568 100-ohm STP (≤100m)
Bandwidth 48G
MAC Address Table 8K
MTBF 539608 hours
Forwarding Mode Store and Forward
Buffer Memory 4M
Network Protocols IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3af/at
LED Display SYS(System); Link; PoE; L/A
PoE Ports 8*PoE Ports
PoE Port Power Max 30W
PoE Standard IEEE802.3af/at
Dimension 165*148*54mm
Transmission Distance 100 meters for RJ45 ports
Power Supply Type 1/2+;3/6- (by default);
Working Environment Operating Temperature: -40℃ ~ +80℃; Storage Temperature: -40℃ ~ +85℃; Relative Humidity: 5 ~ 95%, non-condensing
Certification CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class BCE Mark ,commercial CE/LVD EN60950, RoHS
Industrial Standard IP40
Warranty 5 years
