Home / Product/ SWITCH POE / Standard PoE Switch/ SWITCH POE MS-6616PoE

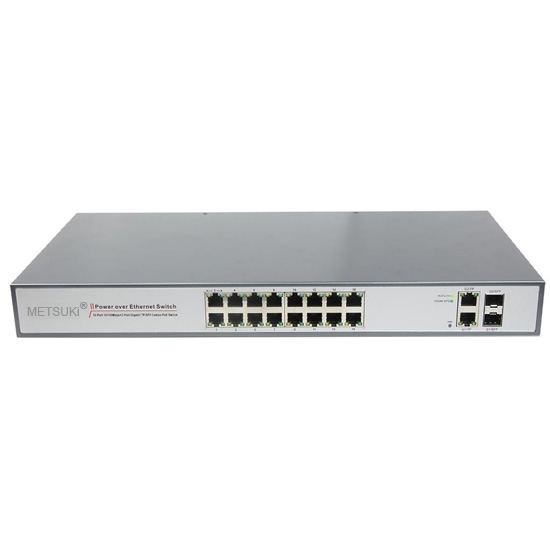

SWITCH POE MS-6616PoE

TECHNICAL PARAMETER LIST
Model MS-6616PoE
Product Name PoE Switch with 16 Ethernet PoE Ports and 2 Gigabit Combo Ports
Connector Type 16x 10/100M copper cable RJ45 ports (all ports support MDI/MDIX) 2x gigabit combo ports
Network Medium 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: 5 classes and more than 5 classes(≤100 meter)
Single mode(9/125um) optical transmission,
transmission distance: 25km(double optical default, single optical alternative)
Performance
Specifications 		Bandwidth: 3.2Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20microseconds
Packet Buffer Memory: 96KB Address Database Size: 1,000
MTBF: 190,000 hours (about 21 years)
Network Protocols
and Standards 		IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI, IEEE 802.3af
LEDs Status System: power supply
Every Port: connecting, PoE working status
Power Maximum PoE power: 260W, PoE port power:15.4W(1~16 port)
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
Working Environment Operating Temperature: 0 ° ~ 55 ° C, Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing, Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3000 m (10,000 ft), Storage Altitude: 3,000 m (10,000 ft)
Radiation CE mark, commercial, FCC Part 15 Class B
VCCI Class B , EN 55022 (CISPR 22), Class B
Safety CE Mark ,commercial, CE/LVD EN60950
Warranty 1 year
