Home / Product/ SWITCH POE / Standard PoE Switch/ SWITCH POE MS-6624PoE

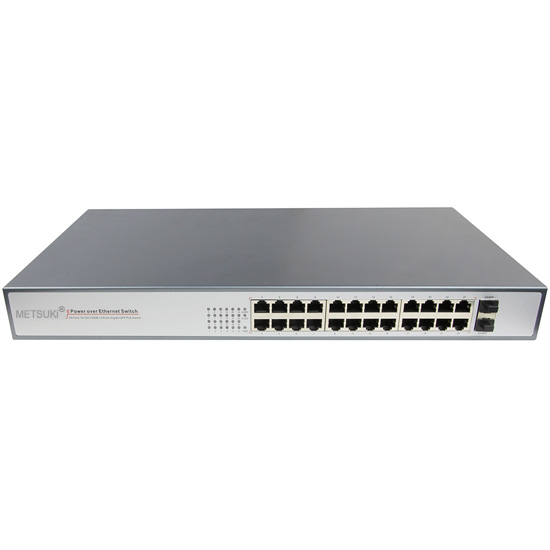

SWITCH POE MS-6624PoE

TECHNICAL PARAMETER LIST
Model MS-6624PoE
Product Name PoE Switch with 24 PoE Ports and 2 x 10/100/1000M Copper RJ45 ports
Connector Type 24x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX) 2x 10/100/1000M copper cable RJ45 ports
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 and more UTP(≤100 meter)
Bandwidth 14.8G
Address Database Size 16K
MTBF 100,000 hours
Network Latency maximum delay less than 20 microseconds
Forwarding Mode Store-And-Forward
Buffer Memory 45M
Network Protocols IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af DTE Power via MDI IEEE 802.3af/at
LED Display PWR; ACT/LINK
PoE Ports 24*PoE Ports
PoE Port Power 30W
PoE Standard IEEE802.3af/at
Working Environment Operating Temperature: -20° ~ 55°C Storage Temperature: -20° ~ 75° C Humidity: 10% ~ 90%, non-condensing Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft) Storage Altitude: 3,000 m (10,000 ft)
Certification CE Mark ,commercial CE/LVD EN60950
Radiation CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B
Transmission Distance 100 meters
Power Supply Type PoE default power supply is end-span(1/2, 3/6 line pair), alternative PoE Power supply is mid-span(4/5, 7/8 line pair)
Product Size 440*225*44mm
Warranty 1 year
