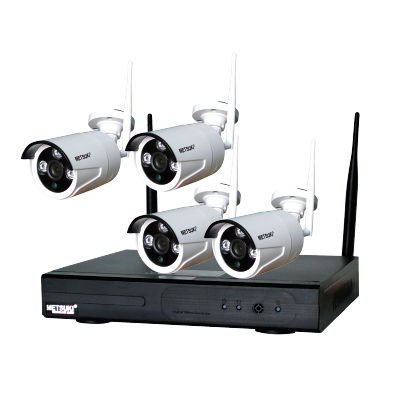

MS-9904IP KITS

Wireless NVR Specification

Model

MS-9904IP KITS

Operating System

Embedded Linux OS

AV(audio/video)input

Network Video

4CH

Network video input broadbank

20Mbps

AUdio Bitrate

64Kbps

AV (audio/video) output

HDMI input

1ch，resolution：1024x768，1366x768，1440x900,1920x1080p

VGA output

1ch，resolution：1024x768，1366x768，1440x900,1920x1080p

AV CODEC Specification

Video Resolution

D1/960P

synch-playback

4CH

Video Control

Video/Capture mode

Maual、Time、Motion、Alarm

Playback mode

Real time、Routine、Event

Backup

USB backup

Alarm

Alarm Input

4ch (optional)

Alarm Output

1ch (optional)

Hard Disk

Type

1*SATA interface

Max Capacity

4 TB at most for each

External Interface

Network Interface

1 adaptable RJ45 10M/100M, 1 WIFI interface

USB Interface

2 USB 2.0

Protocol

UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up)
DHCP (Automatically obtain an IP address), etc…

Network Control

Others

Power Supply

DC12V3A

Power Consumption (W)

≤5W（Without HDD）

Operate Temperature (°C)

-10℃~+55℃

Working Humidity (%) RH

10%~90%

Size

257mm（W）×210mm（V）×45mm（H）

Weight（excluding HDD）

≤1Kg

IPC  Specification

Technical Parameters

Sensor

1/3” Progressive Scan Sensor

Signal System

PAL/NTSC

Resolution

1280 x 960 16 : 9 High Defination

Minimum illumination

Color: 0.1 Lux;  B/W: 0.01 Lux

Shutter

1/25s to 1/25,000s

Lens

3.6mm

OSD

Date Time & Title

White Balance

Auto

Day&Night

Auto / Color / BW

3D-DNR

Auto

Mirror/Flip

On / Off

Frame Specification

Three Streaming at the Same Time:
H.264 128x960@30fps or below
H.264 640x480@30fps or below

S/N

> 39.1 Db

Interface

RJ45 / WIFI 802.11b/g/n

General Specification

Anti-thunder Level

Standard IEC61000-4-5

Working Temperature/Humidity

-10℃ to +50℃ / 30% to 80% RH

Working Temperature/Humidity

-20℃ to +60℃ / 20% to 90% RH

Power Input

DC12V-1A

Power consumption

≤6W

Size

205(L)×70(W)×55 (H)mm

Weight

500g

Level of Protection

IP66
