MS-7039IP-S

Model MS-7039IP-S

Image Sensor

1/2.8" SONY Starvis Back-illuminated CMOS sensor

Resolution

5 Mega-Pixel

Effective Pixels

2616 (H) x 1964 (V)

Compression

H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG

TV System

PAL/NTSC

Electronic Shutter Time

Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec

Minimun Illumination

0.01Lux

S/N Ratio

≥52dB

Scanning System

Progressive

Video Output

Network

Reset Button

Optional

Lens

Focus Length

2.8-12mm

Focus Control

Manual

Lens Type

Varifocal

Pixels

5MP

Night Vision

Infrared LED

42 x 4PCS

Infrared Distance

40M

IR Status

Auto Control

IR Power On

Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS, RTP,RTSP,RTCP,NTP,SMTP

ONVIF

Support ONVIF 2.4

P2P

YES, Support QR Code

POE

Optional/Internal, Support IEEE 802.3af

Video Delay

0.3S (Within the Lan)

Main Stream 1

2592*1944@20fp

2560*1920@20fp

Main Stream 2

2560*1440@25fp

IE Brower

IE811,  Google Chrome (lower than Ver44), Firefox  (lower than Ver53), Mac Safari(lower than version 12)

Smart Phone

iPhone, iPad, Android, Android Pad

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Image Config

Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR, White Balanc, FLK(Flicker Control), Video Tampering

Corridor Pattern

Support

Defog  Mode

Support

ROI

Support

BLC

Support

WDR

Support

Motion Detection

Support

Privacy  Masking

3 Rectangular Zone

Recording Mode

NVR/CMS/Web

Language

Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands

Interface

Audio

Optional

SD Card Slot

Optional, Support Max 128GB

General

Housing

Metal ,IP66

Anti-cut Bracket

Yes

IR Cut Filter

Yes

Operation Temperature

-20℃ ~ +60℃ RH95% Max

Storage Temperature

-20℃ ~ +60℃ RH95% Max

Power Source

DC12V±10%, 950mA

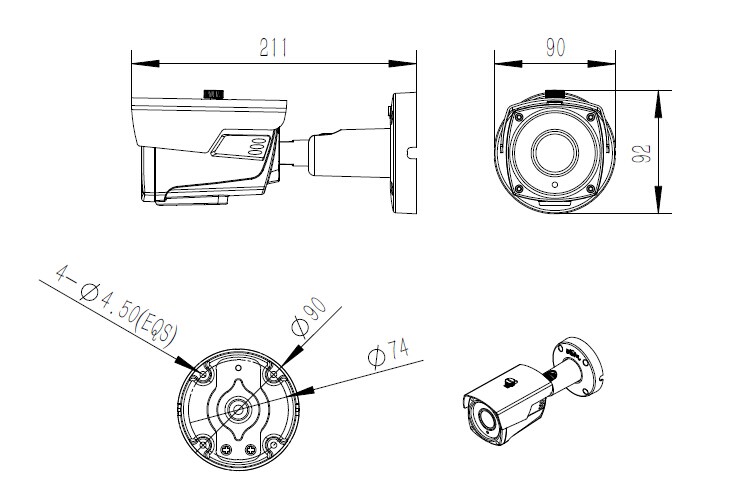

Dimension

211(W) x 92(H) x 90(D)mm

Weight

1400g
