Model
|

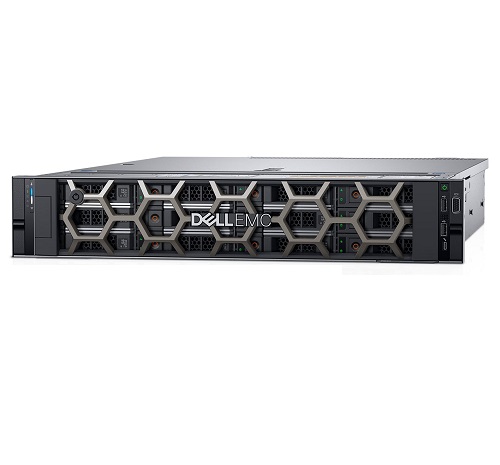

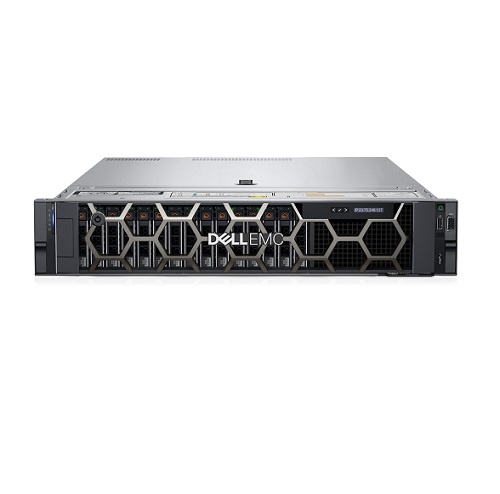

Dell PowerEdge R550 Rack Server
|
|
Processor
|
Up to
two 3rd Generation Intel® Xeon® Scalable processors with up to 24
cores per processor
|
|
Operating System
|
Canonical® Ubuntu® Server
LTS
Citrix® Hypervisor®
Microsoft® Windows Server® with Hyper-V
RedHat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®
|
|
Chipset
|
Intel® C620A
chipset
|
|
Memory
DIMM Speed
|
Intel® C620A
chipset
|
|
Memory Type
|
UDIMM
|
|
Memory Module
Slots
|
16 DDR4
DIMM slots
|
|
Maximum RAM
|
RDIMM 1
TB
|
|
Storage
Front Bays
|

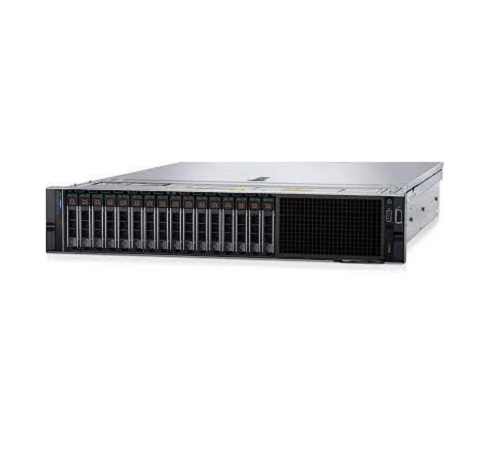

Up to 16
x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 7.68 TB
Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 16 TB
|
|
Storage Controllers
Internal Controllers
|
PERC
H345, PERC H745, PERC H755, HBA355i
|
|
External
Controllers
|
PERC
H840, HBA355e
|
|
Software RAID
|
S150
|
|
Internal Boot
|
Boot
Optimized Storage Subsystem (BOSS-S2): HWRAID 2 x M.2 SSDs 240 GB or 480 GB
Internal Dual SD Module/ USB 3.0
|
|
Security
|
Cryptographically
signed firmware
Secure Boot/Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
|
|
Management
|
Embedded / At-the-Server
iDRAC9/iDRAC Service Module
iDRAC Direct
Quick Sync 2 wireless module
|
|
Consoles
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin
|
|
Mobility
OpenManage Mobile
|
|
Tools
iDRAC RESTful API with Redfish
IPMI/RACADM CLI
System Update Utility
Update Catalogs
|
|
OpenManage Integrations
BMC® Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter and vRealize Operations Manager
|
|
OpenManage connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager
Nagios® Core
Nagios® XI
|
|
Power Supplies
|
1100 W
DC/-48–(-60) V
800 W Platinum AC/240 HVDC
600 W Platinum AC/240 HVDC
Hot plug power supplies with full redundancy option
Up to 5 cold swap fans
|
|
Ports
|
Network Options
2 x 1 GbE LOM and 1 x OCP 3.0 (x8 PCIe lanes) (optional)
|
|
Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0/ 1 x VGA
|
|

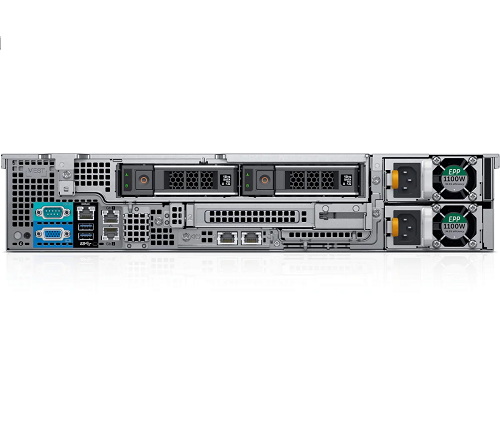

Rear Ports
1 x USB 2.0/ 1 x USB 3.0
1 x Serial (optional)
1 x Ethernet/ 1 x VGA
|
|
Internal Ports
1 x USB 3.0 (optional)
|
|
Slots
|
3 x Gen 4 PCIe slots, 1 x Gen3
PCIe slot
|
|
Video Card
|
1 x VGA
|
|
Bezel
|
Optional LCD bezel or security
bezel
|
|
Form Factor
|
2U Rack Server
|
|
Dimensions &
Weight
|
Height: 86.8 mm (3.41 inches)
|
|
Width: 434.0 mm (17.08 inches) — without bezel
482.0 mm (18.97 inches) — with bezel
|
|
Depth: 721.69 mm (28.72 inches)
|
|
Weight: 24.80 kg (54.67 lbs.)
|
